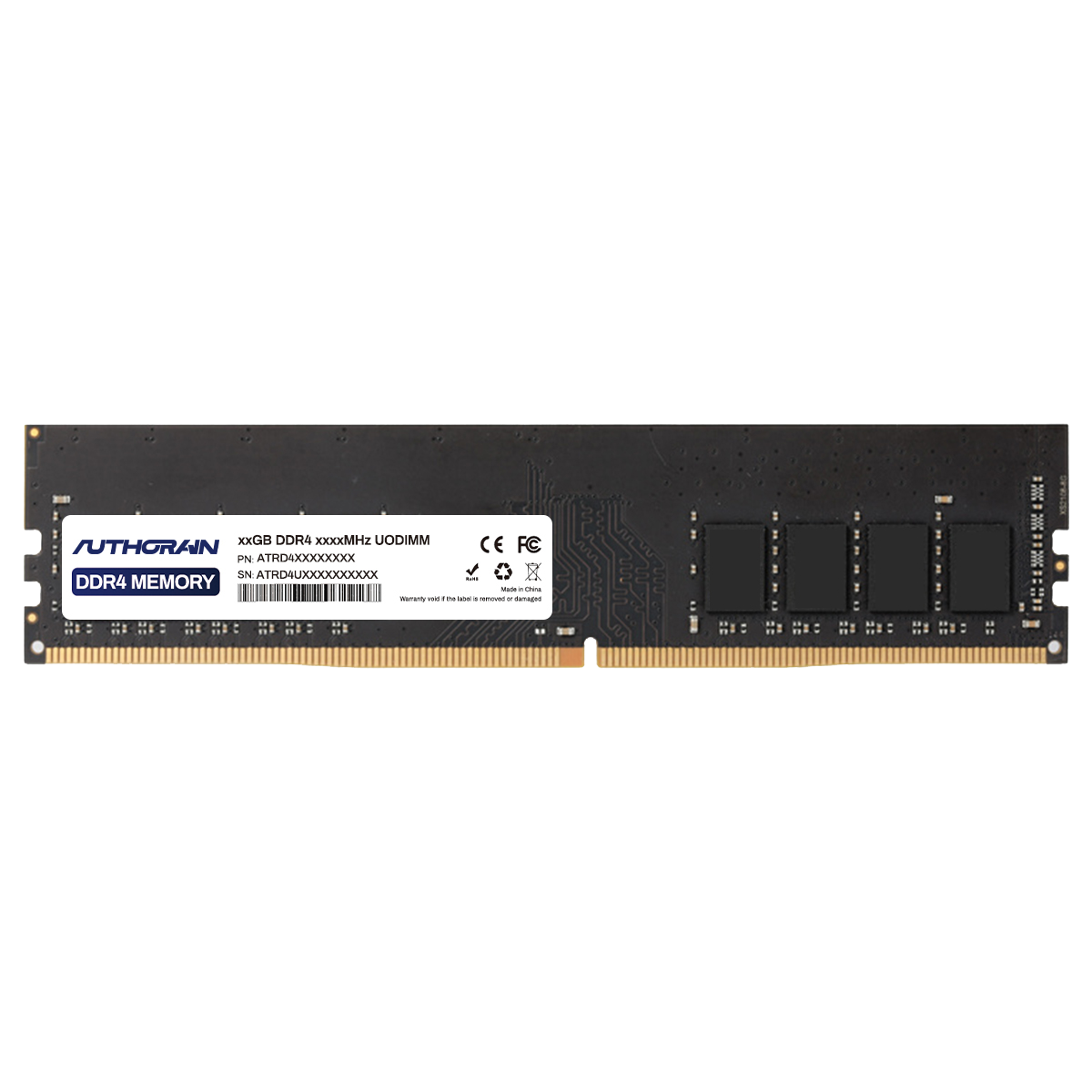

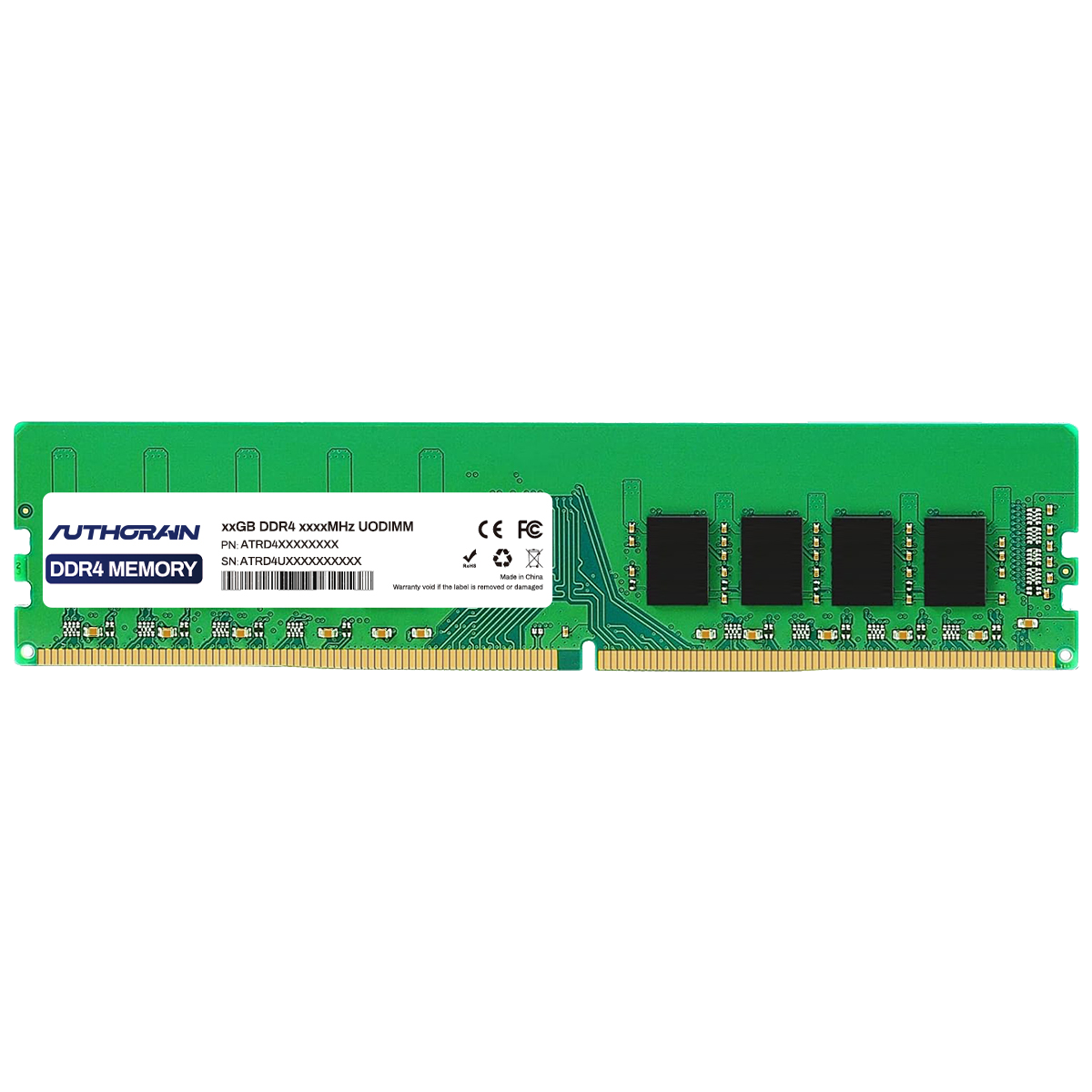

DDR4 - UDIMM/DESKTOP
The Authorain DDR4 memory module complies with the JEDEC design standards. It uses high-quality original factory DRAM IC and has undergone rigorous performance testing and compatibility testing. The product offers speed options of 2666MT/s and 3200MT/s, and is available in capacities 8GB, 16GB and 32GB.
DDR4
Type UDIMM / 台式机
Capacity 4GB 8GB 8GB 16GB 16GB
Data Rate 2666MHz 2666MHz 3200MHz 2666MHz 3200MHz
Function Non-ECC Unbuffered Memory
Pins 288 Pin
Voltage 1.2V
Operating Temperature 0~70℃
Board Size 133.35 x 30.75 mm ± 0.15 mm
Thickness(mm) 1.4± 0.1mm（8-Layer）
CL-tCD-tRP 19-19-19 19-19-19 22-22-22 19-19-19 22-22-22
Warranty 终身有限质保
