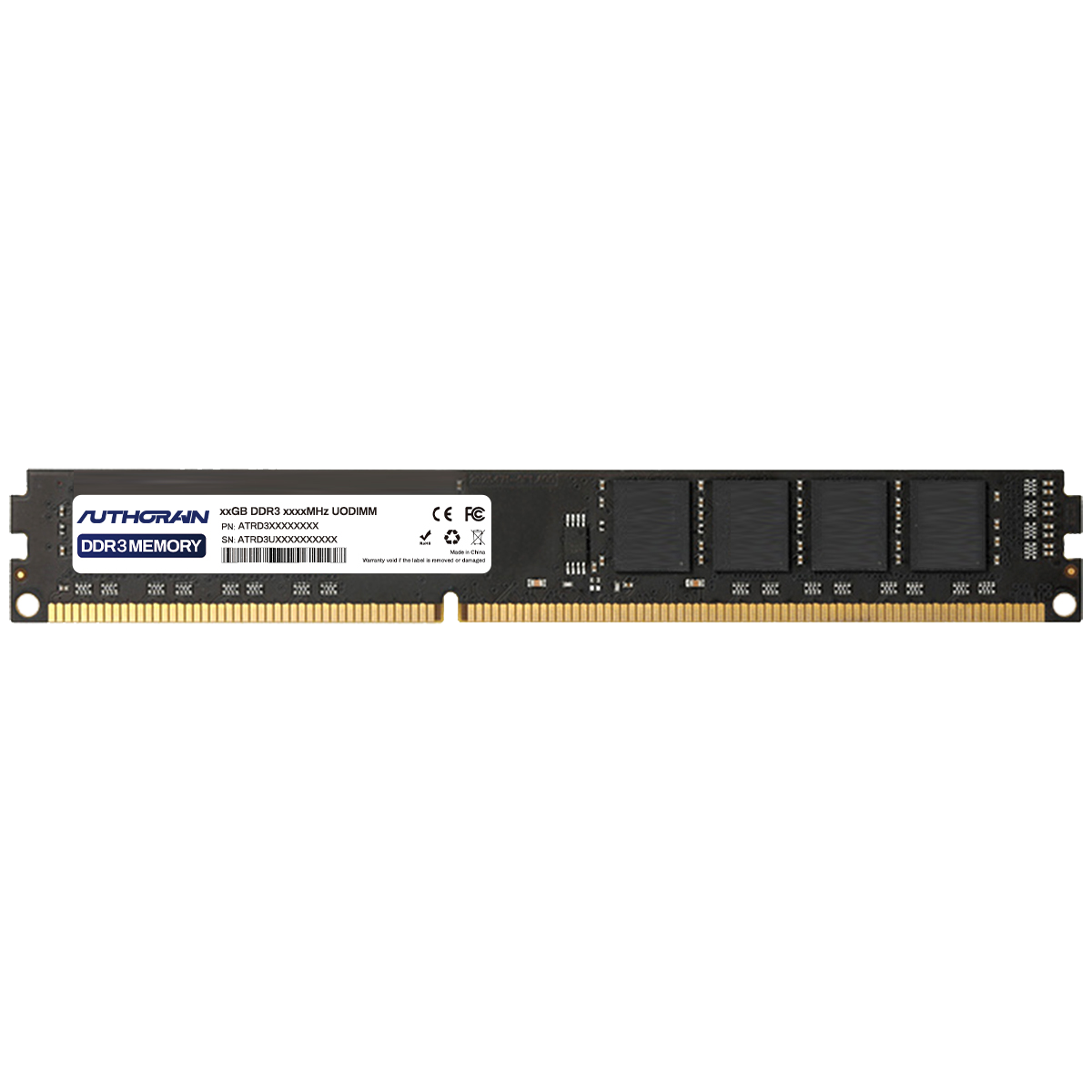

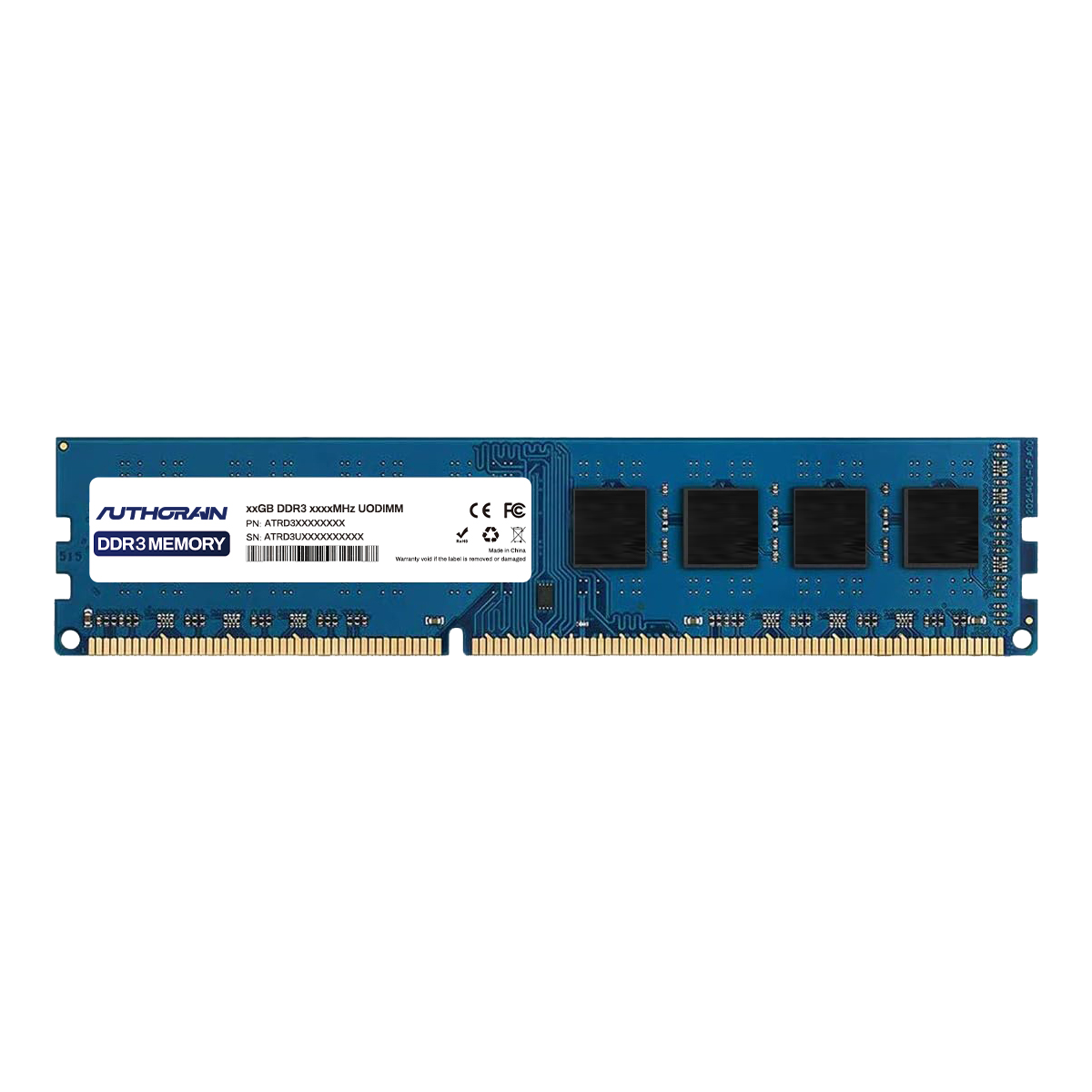

DDR3 - UDIMM/DESKTOP
The Authorain DDR3 memory module complies with the JEDEC design standards. It uses high-quality original factory DRAM IC and has undergone rigorous performance testing and compatibility testing. The product offers speed options of 2666MT/s and 3200MT/s, and is available in capacities 8GB, 16GB and 32GB.
DDR3
Type UDIMM/DESKTOP
Capacity 4GB 8GB 16GB
Data Rate 1333MHz 1600MHz 1333MHz 1600MHz
Function Non-ECC Unbuffered Memory
Pins 240 Pin
Voltage 1.5 V
Operating Temperature 0~70℃
Board Size 133.35 x 18.75 mm ± 0.1 mm
Thickness(mm) 1.27 ± 0.1mm（8-Layer）
CL-tCD-tRP 11-11-11-28
Warranty 终身有限质保
