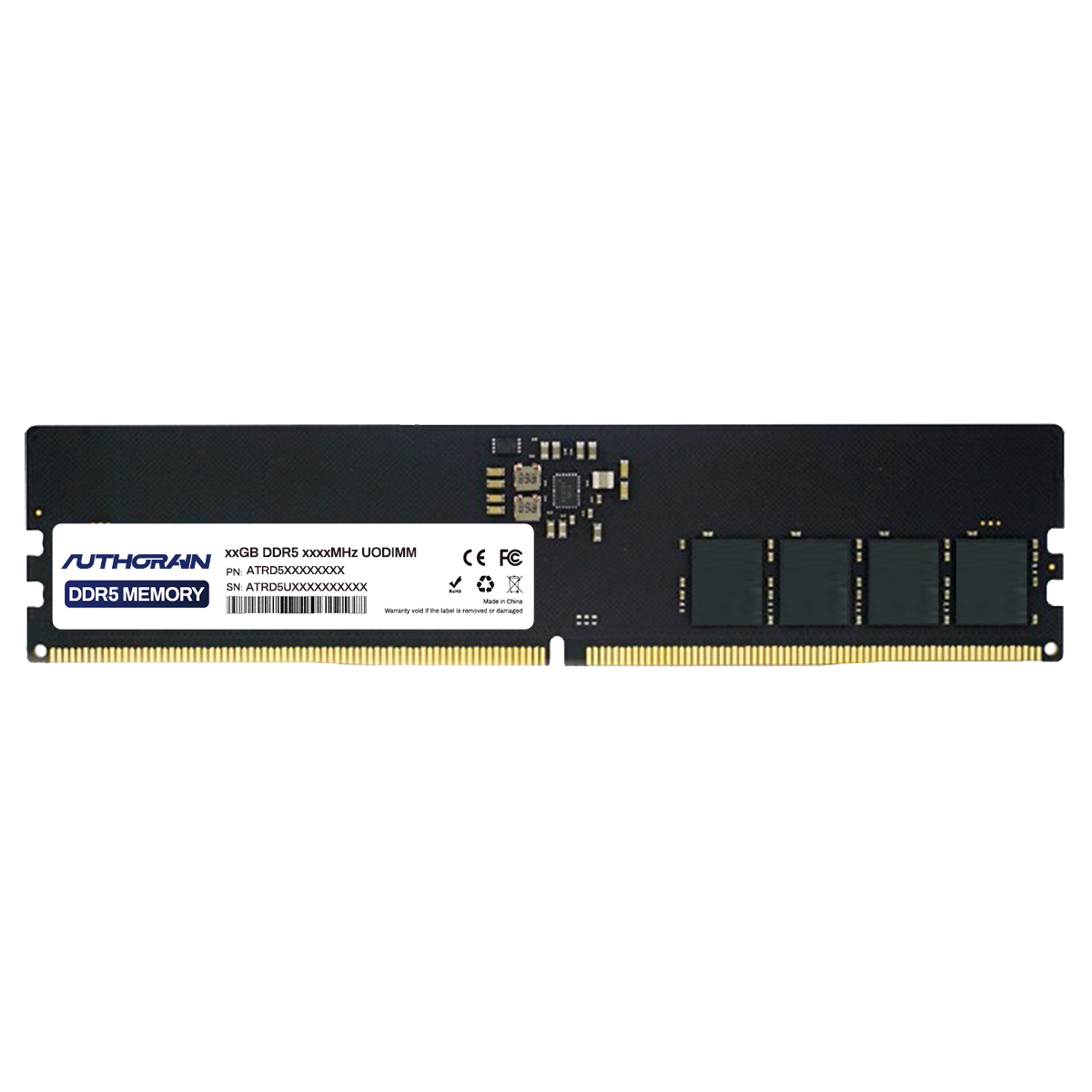

DDR5 - UDIMM/DESKTOP
The Authorain DDR5 product is a low-power, high-performance memory module product that fully complies with JEDEC standards. This series of products operates at a 1.1V working voltage and is suitable for an environmental temperature range of "0℃ to 85℃". Currently, it offers capacities ranging from 16GB to 32GB/DIMM for selection. The DRAM IC used in this series are 100% rigorously selected to ensure stable operation of the product and strong compatibility.
DDR5
Type UDIMM/DESKTOP
Capacity 8GB 16GB 32GB
Data Rate 4800MHz 5600MHz 4800MHz 5600MHz 4800MHz
Function Non-ECC Unbuffered Memory
Pins 288 Pin
Voltage 1.1V
Operating Temperature 0~70℃
Board Size 133.35 x 30.75 mm ± 0.15 mm
Thickness(mm) 1.4± 0.1mm（8-Layer）
CL-tCD-tRP 40-40-40-77 30-36-36-76 40-40-40-77 30-36-36-76 40-40-40-77
Warranty 终身有限质保
