Memory
>
DDR3
>
SODIMM/笔记本

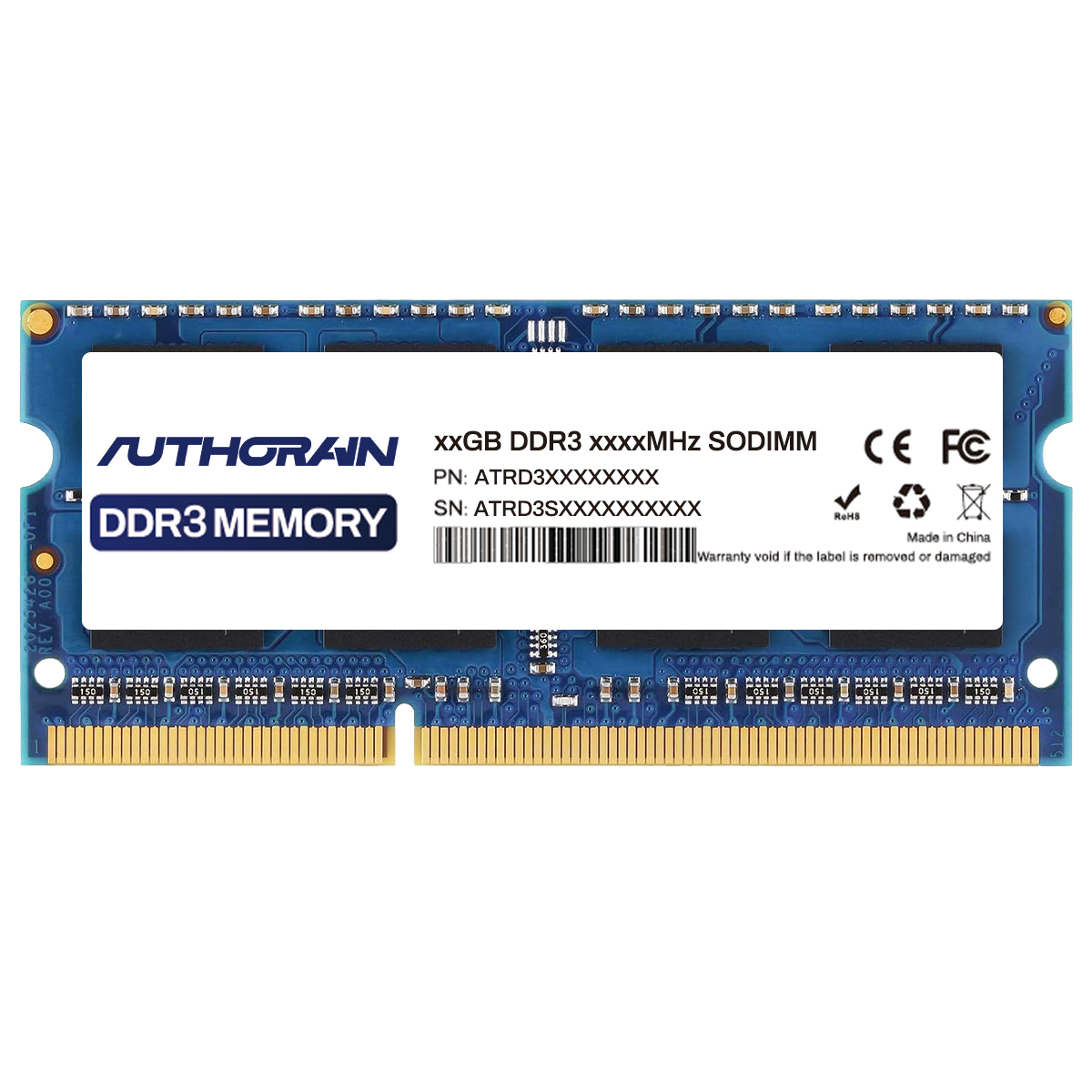

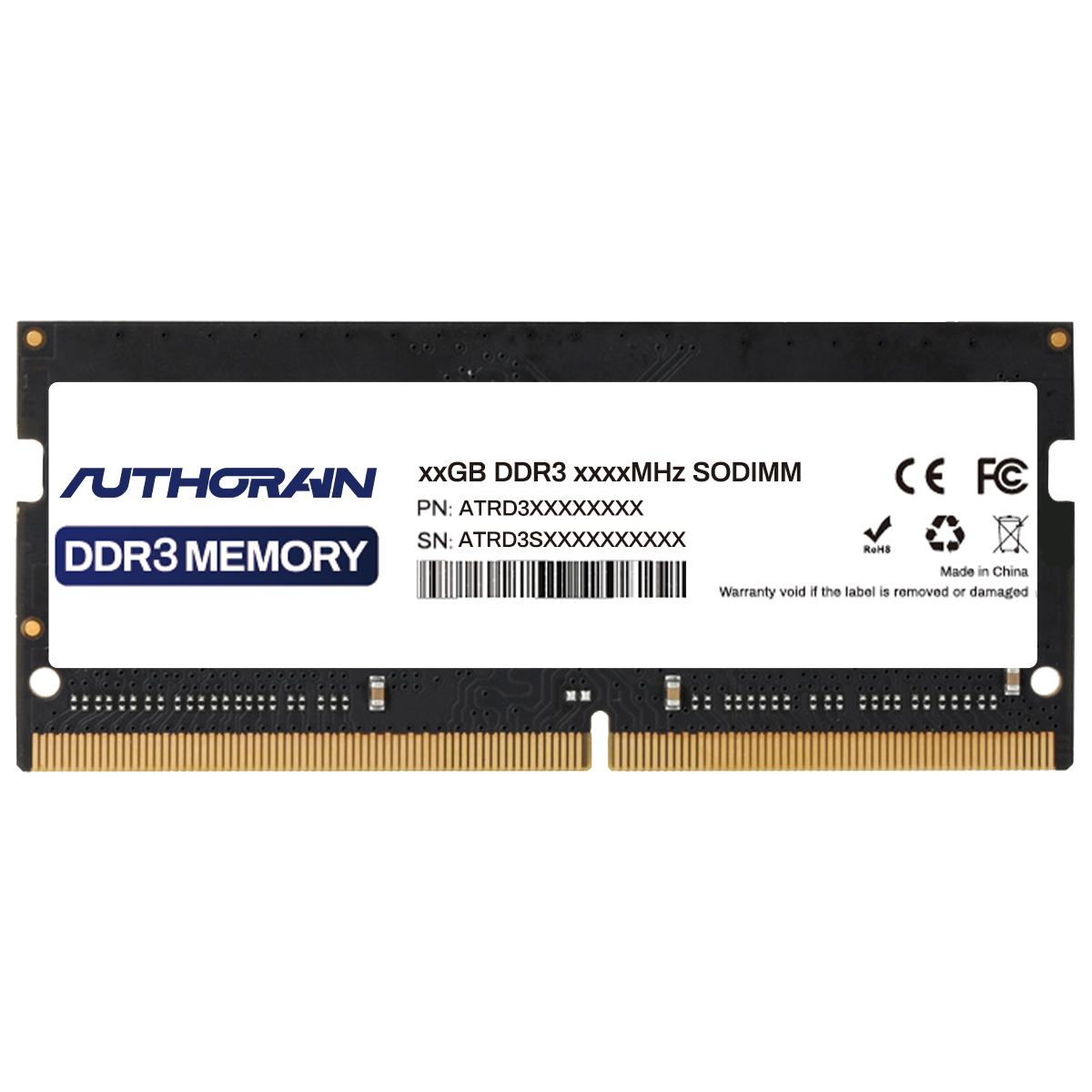

DDR3 - SODIMM/LAPTOP
The Authorain DDR3 memory module complies with the JEDEC design standards. It uses high-quality original factory DRAM IC and has undergone rigorous performance testing and compatibility testing. The product offers speed options of 2666MT/s and 3200MT/s, and is available in capacities 8GB, 16GB and 32GB.
DDR3
Type SODIMM / 笔记本
Capacity 4GB 8GB 16GB
Data Rate 1333MHz 1600MHz 1333MHz 1600MHz
Function Non-ECC Unbuffered Memory
Pins 204 Pin
Voltage 1.35 V
Operating Temperature 0~70℃
Board Size 67.6 x 30 mm ± 0.15 mm
Thickness(mm) 1.0 ± 0.08mm(8-Layer)
CL-tCD-tRP 11-11-11-28
Warranty 终身有限质保
